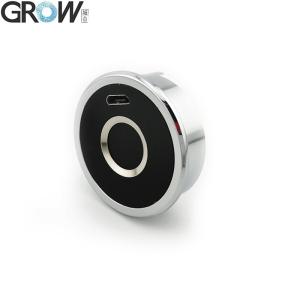

DC3.3-10V Fingerprint Control Board High Level Output Convenient

Place of Origin : China

Certification : CE

MOQ : 1

Packaging Details : Carton

Delivery Time : Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays

Payment Terms : T/T, PayPal

Supply Ability : 5000

Model NO. : KR501

Screen : as Picture

Communication Interface : RS232

Fingerprint Capacity : 20

Power Supply : DC 3.7-10V

Output : 1 Second, 3.3V-500mA

Stand-by Current for Control Board : 2.5-7ua,Typical Value: 3ua

Working Current : 40-250mA,Typical Value: 45mA

Size : Diameter 36mm

Transport Package : Standard Export Carton Package

Specification : Power supply: DC 3.7-10V

Trademark : GROW

Origin : China

HS Code : 8471609000

Package Size : 13.00cm * 8.00cm * 9.00cm

Package Gross Weight : 0.100kg

Voice Service : Without Voice Service

Clock : Without Clock

Color : as Picture

Samples : US$ 6.5/Piece 1 Piece(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

Payment Method : Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Contact Now

Grow KR501 High Level Output DC3.3-10V Fingerprint Control Module

Technical Parameters

DC3.7-10V, High Level output, Output:1 second, 3.3V-500mA

·Fingerprint Capacity: 20

·Working Voltage: DC 3.7-10V

·Standby Current (excluding external equipment): 2.5-7uA typical value: 3uA

·Working Current (excluding external equipment): 40-250mA typical value: 45mA

·Output: 1second, 3.3V-500mA

·Low voltage alarm: ≤4.8V

Pin Definition:

Pin	Name	Description
1	VCC	Power + 3.7-10V
2	GND	Power - Ground
3	NC	NC
4	OUT1	1 second, 3.3V-500mA
5	INIT_KEY	Initialize key,long press low level trigger
6	NC	NC

Operation Instruction

After the fingerprint is passed, the OUT1 pin outputs a signal with a voltage of 3.3V and a current of 500ma for 1 second. In the initialization state, any fingerprint can pass through.

1. Register Fingerprint: Long press the registered fingerprint(In initial state press any fingerprint), until the blue indicator light turn on and hearing music, means the system in register state, press the finger with multiple times in fingerprint collection area,each press have "di" sound, until hearing music means fingerprint register successful. Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds.

Note: In the initialization state,must have to register more than 2 correct fingerprints for the first time,then the system can be removed from the initialization state.

2. Delete Fingerprint(Back to initialization state):

2.1 Long press the registered fingerprint, until the red indicator light turn on,means all fingerprints are deleted and back to initialization state.

2.2 Use INIT_KEY pin. In the standby state, make the INIT_KEY pin ground connection, until the red indicator to turn on, hear the "Di-" sound, disconnect the grounding, the indicator turns green, means all fingerprints are deleted and back to initialization state.
